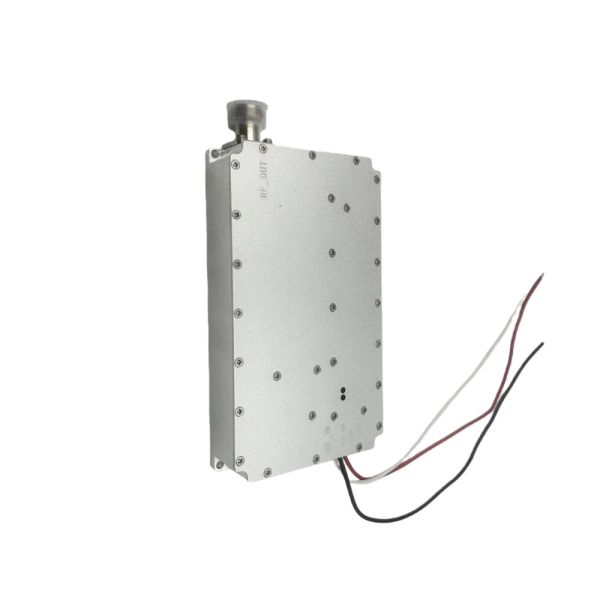

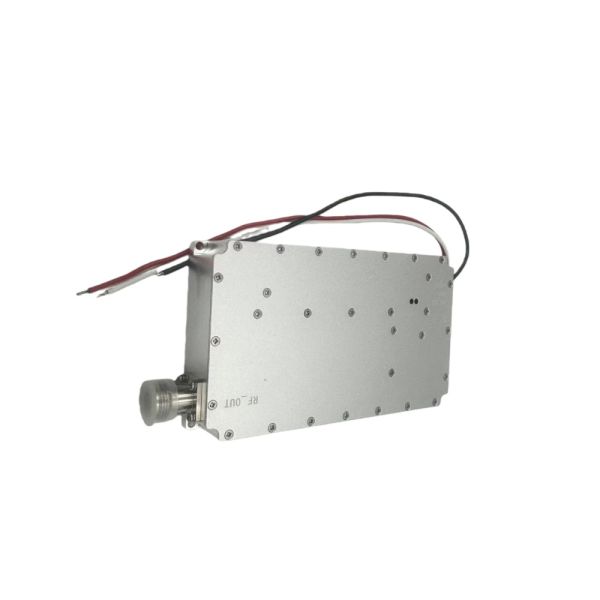

28V 150W VTX FPV Power Amplifier with Countermeasure Function 100~6000MHz Built-in Sweep Source & Enable

Brand Name : kimghz technology

Model Number : KH-PAC150W

Certification : CE

Place of Origin : Original/CHINA

MOQ : 10 Pieces

Price : Discussion

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000pieces/month

Delivery Time : 3-8days

Packaging Details : International Standard Packing

model : KH-PAC150W

Voltage : 28V

Current : ≤12A

Frequency : 100~6000MHz

Power Output : 100W

Weight : 800g

Dimension : 170*80*25mm

Other functions : With enable, containing a sweep frequency source

Contact Now

28V 150W VTX FPV Power Amplifier with Countermeasure Function 100~6000MHz Built-in Sweep Source & Enable

Product Overview

The 150W Power Amplifier Countermeasure Module serves as a core component in high-end electronic protection systems, specifically engineered to deliver effective jamming and countermeasures against drone signals across targeted frequency bands. Utilizing advanced high-power radio frequency amplification technology, this module generates directional signals within specific frequency ranges to disrupt communication and navigation links between drones and their control centers, enabling drone repulsion or forced landing operations.

This advanced module finds extensive application in critical security scenarios including the protection of important facilities, safeguarding of confidential venues, and emergency counter-drone operations.

Product Specifications
Parameter Specification
Frequency 100-6000 MHz
Output Power 150 W
Supply Voltage 28 V DC
Operating Current Approximately 12 A
Dimensions (L×W×H) 170×80×25 mm
Weight 0.8 Kg
Output Interface N Female Connector
Power Supply Interface Power Cable
Additional Functions Enable Function Included, Built-in Sweep Source


28V 150W VTX FPV Power Amplifier with Countermeasure Function 100~6000MHz Built-in Sweep Source & Enable28V 150W VTX FPV Power Amplifier with Countermeasure Function 100~6000MHz Built-in Sweep Source & Enable28V 150W VTX FPV Power Amplifier with Countermeasure Function 100~6000MHz Built-in Sweep Source & Enable

Test Part

28V 150W VTX FPV Power Amplifier with Countermeasure Function 100~6000MHz Built-in Sweep Source & Enable

Key Features

· Frequency range: 100-6000 MHz; bandwidth capability: 100-300 MHz

· Class AB GaN (Gallium Nitride) circuit design

· Instantaneous wide bandwidth operation

· 50-ohm input and output impedance standard

· Small size and lightweight construction

· Superior reliability and durability in harsh environments
