Long-Range 3.3GHz 6W FPV VTX Offering Reliable Performance and 3060–3500MHz Frequency Coverage

Product Categories
Shenzhen Xinhu Communication Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Long-Range 3.3GHz 6W FPV VTX Offering Reliable Performance and 3060–3500MHz Frequency Coverage

Brand Name : Kimghz technology

Model Number : KH-ALV3306AC

Certification : CE

Place of Origin : Original/CHINA

MOQ : 10 Pieces

Price : negotiation

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000pieces/month

Delivery Time : 2-5days

Packaging Details : International Standard Packing

Model : KH-ALV3306AC

Frequency : 3060MHz~3500MHz

Input Voltage : 7-26V

Power Output : 7W

Channels : 64CH

Output Voltage : 5V

Range : 3060MHz~3500MHz

Weight : 40.4g

Dimensions : 50*38*16mm

Contact Now

Long-Range 3.3GHz 6W FPV VTX Offering Reliable Performance and 3060–3500MHz Frequency Coverage

High-stability wireless video transmission module featuring stable transmission and 3060MHz-3500MHz frequency coverage for professional drone applications.

Product Overview

This advanced 3.3GHz FPV Video Transmitter with adjustable power output operates from 3060MHz to 3500MHz, designed for reliable, low-latency, long-range drone video transmission in professional and industrial UAV applications.

The 3.3G 64-channel VTX is a high-performance wireless video transmission module specifically engineered for drone applications, providing stable and reliable video signal transmission with flexible parameter customization. Supporting 7-26V wide voltage input, it adapts to various drone power supply systems and features a dedicated LED display for intuitive real-time monitoring of working parameters.

Compared to standard single-channel or fixed-parameter VTX modules, this product offers 8 selectable bands and 8 channels per band, totaling 64 channels, which significantly enhances anti-interference capability and avoids signal conflicts in complex flight environments.

Technical Specifications
Brand Name Kimghz technology
Model Number KH-ALV3306AC
Frequency 3060MHz~3500MHz
Power Output 6 Watt
Output Voltage 5V
Power Supply 7-26V
Antenna Connector SMA connector
Extra Feature IRC
Product Images
Long-Range 3.3GHz 6W FPV VTX Offering Reliable Performance and 3060–3500MHz Frequency Coverage

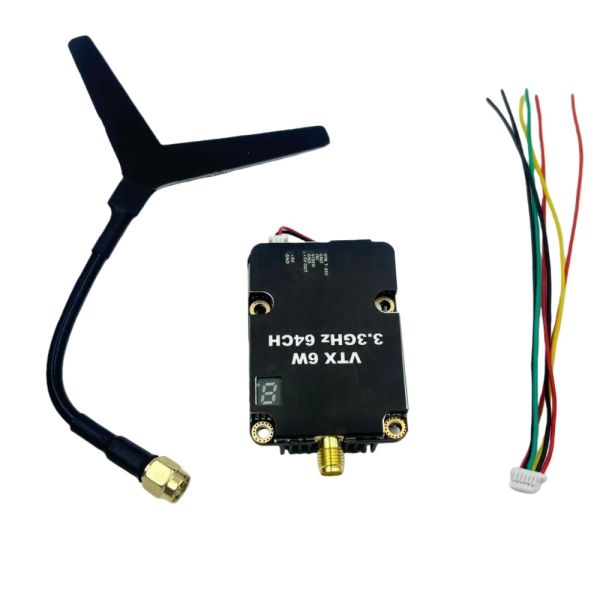

Front View
Long-Range 3.3GHz 6W FPV VTX Offering Reliable Performance and 3060–3500MHz Frequency Coverage

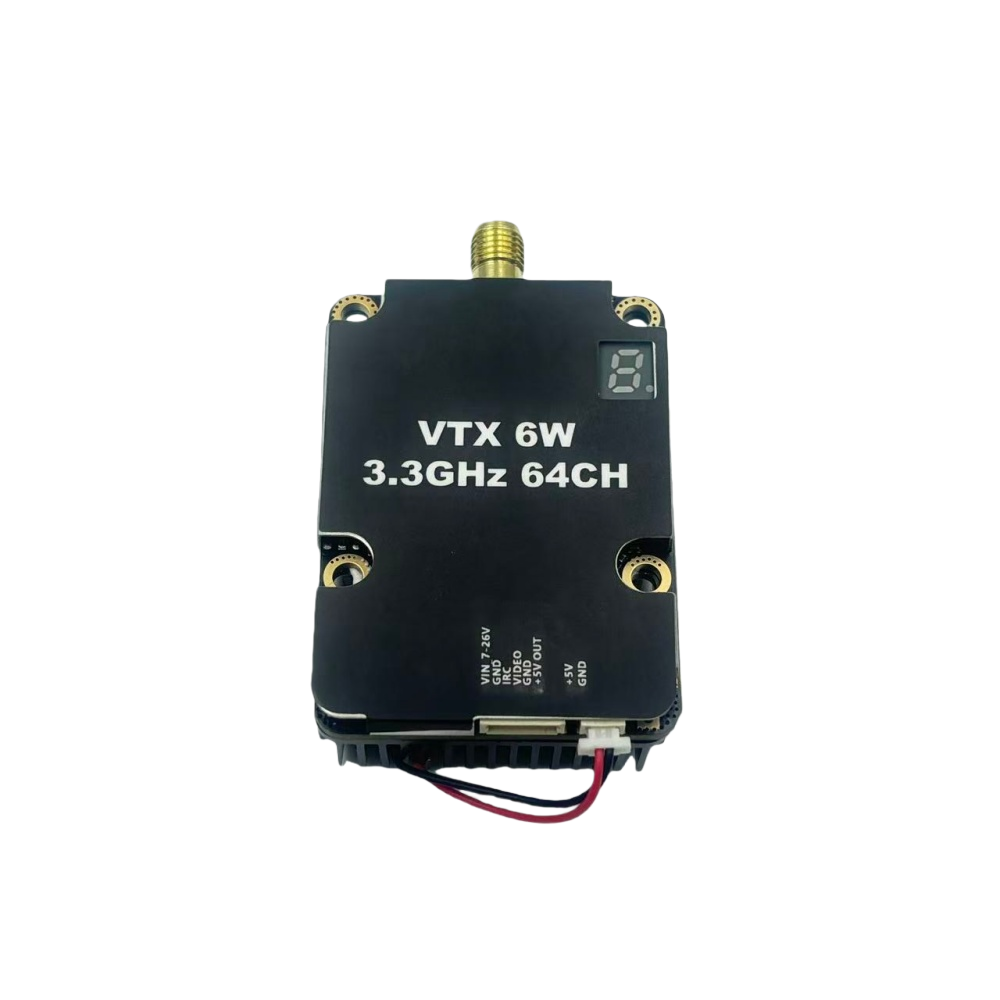

Side View
Long-Range 3.3GHz 6W FPV VTX Offering Reliable Performance and 3060–3500MHz Frequency Coverage

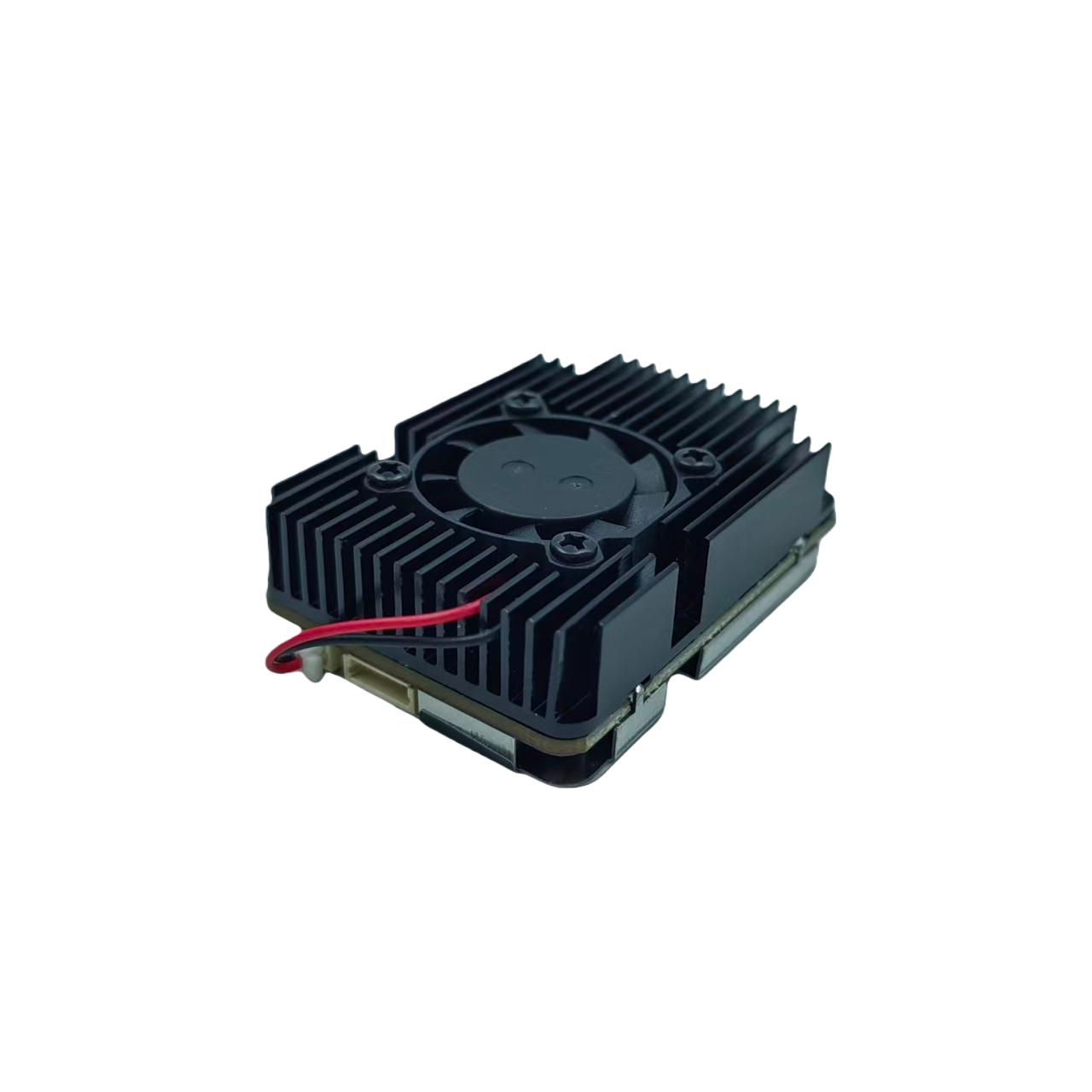

Technical Details
Long-Range 3.3GHz 6W FPV VTX Offering Reliable Performance and 3060–3500MHz Frequency Coverage

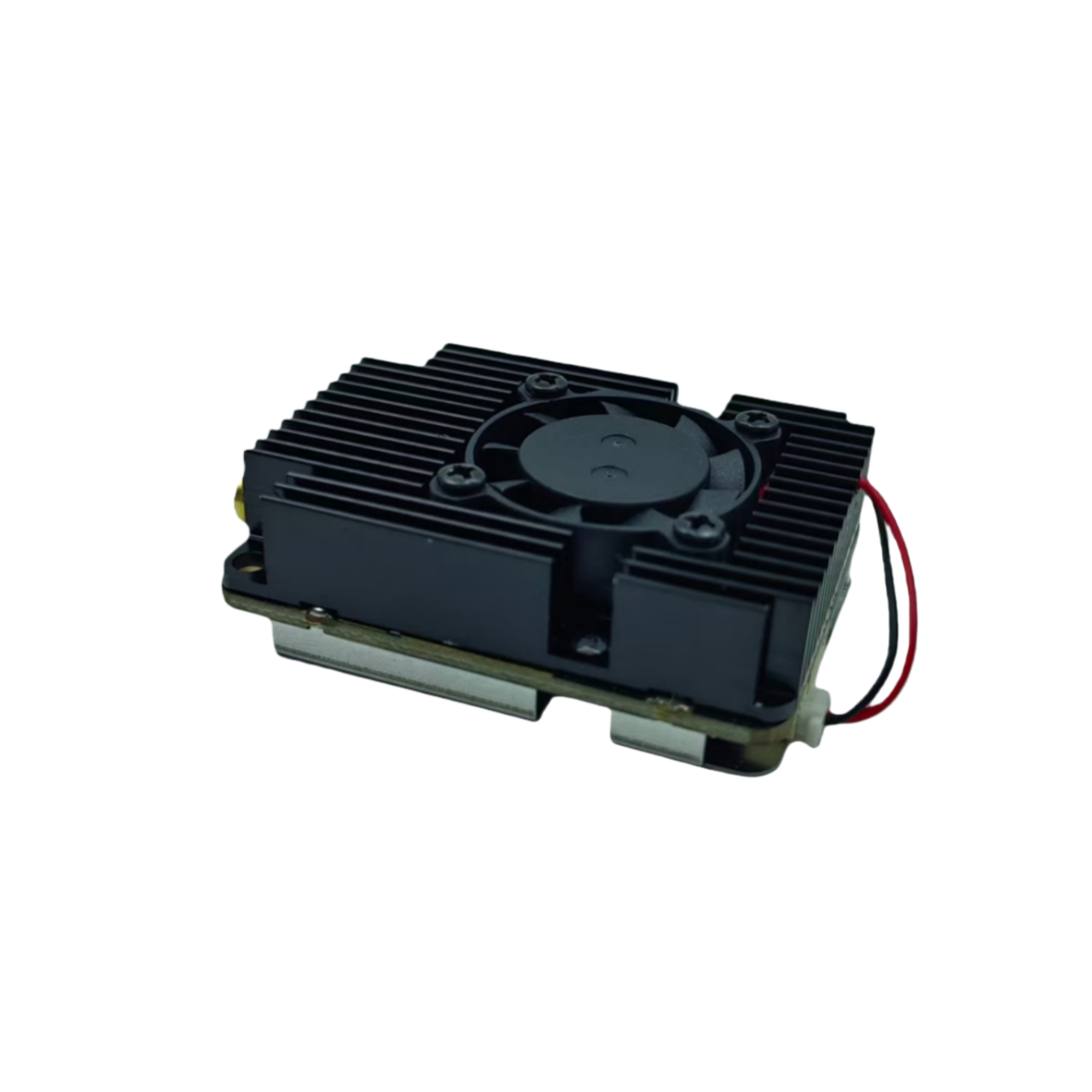

Connectivity Options
Long-Range 3.3GHz 6W FPV VTX Offering Reliable Performance and 3060–3500MHz Frequency Coverage

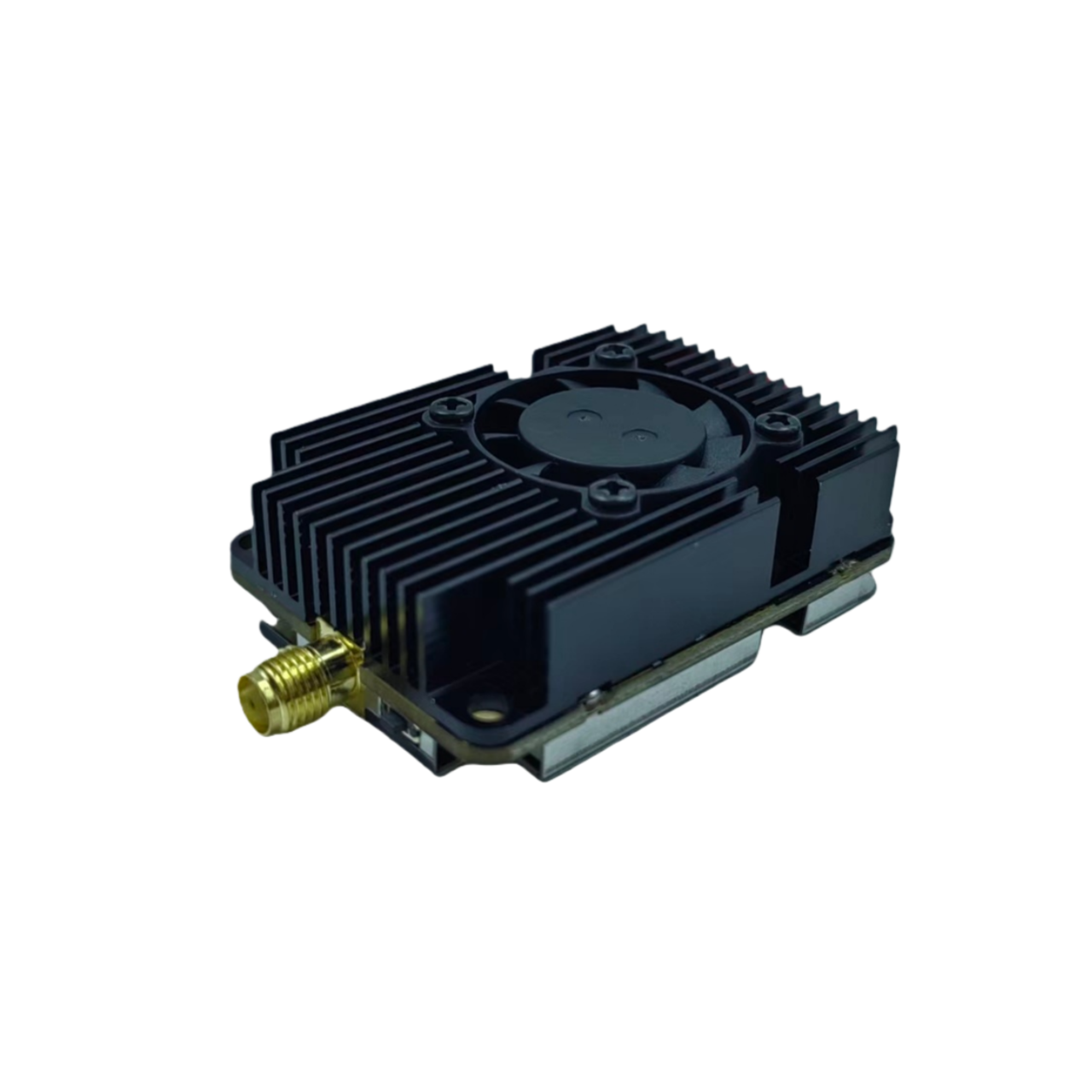

Specifications Display
Long-Range 3.3GHz 6W FPV VTX Offering Reliable Performance and 3060–3500MHz Frequency Coverage
Installation Example
Key Features
Frequency & Channel Configuration

3.3G frequency band with 8 selectable bands (A-H) and 8 channels per band, totaling 64 channels for strong anti-interference and flexible signal transmission

Flexible Power Adjustment

Supports 2 high-power levels (2000mW and 7000mW) and 0dBm P-mode, with convenient power switching via button operation (4-second press to enter, short press to adjust)

Wide Voltage Adaptation

7-26V input voltage range, compatible with various drone power supply systems for strong versatility

Enhanced Reliability

Designed with dedicated heat sink for optimal thermal management, ensuring stable operation under long-term high-load transmission conditions

Safe Operation

Supports pit mode for safe ground debugging with flexible entry/exit methods via Betaflight or button operation
